Usage: River Dam
Material: Steel
Water Levels: 1-10m
Dam Length: 2-1000m
Transport Package: on Pallet
Specification:5*5m Each Unit

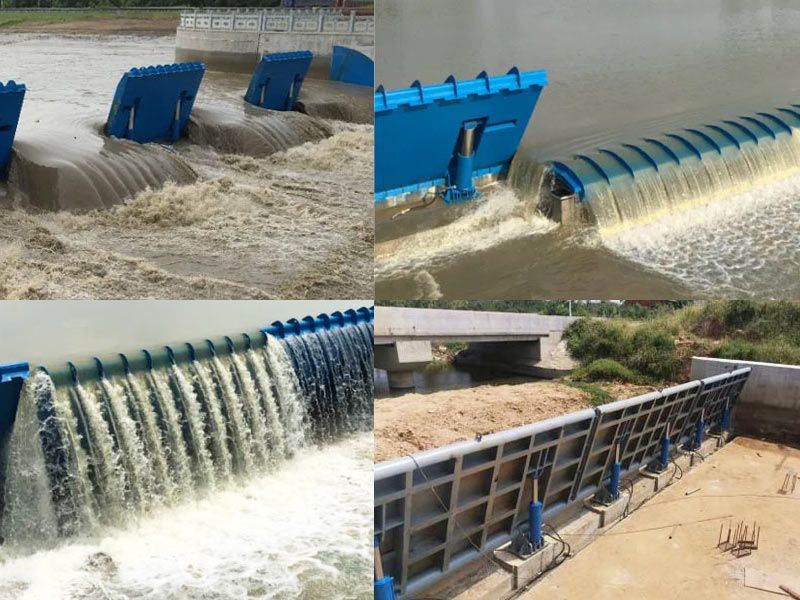

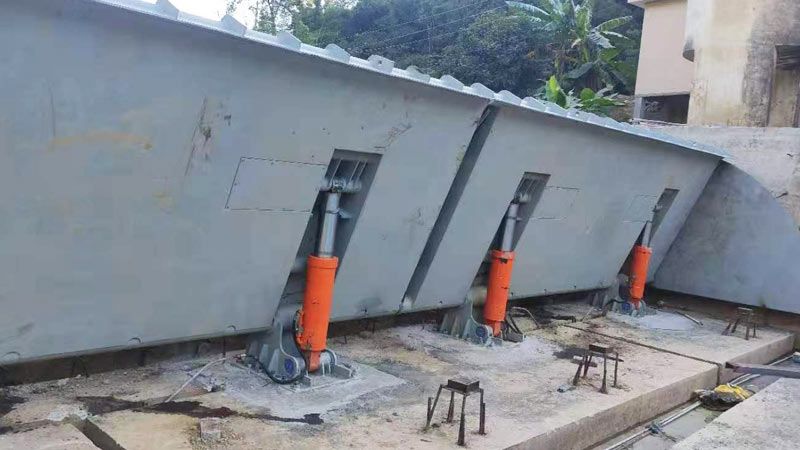

Hydraulic Elevator Dams, also known as hydraulic spillway weirs, are advanced and robust structures designed to effectively manage water flow, prevent flooding, and protect downstream areas. Engineered with hydraulic cylinders positioned behind the dam panels, these systems provide reliable control by raising the gates to block water or quickly lowering them to allow safe flood discharge. Built to withstand diverse environmental conditions, Hydraulic Elevator Dams offer low maintenance and high durability, making them ideal for a wide range of water management applications.
These hydraulic structures are versatile, suited for river beautification, irrigation water storage, reservoir capacity expansion, and urban water ecosystem projects, contributing significantly to both water conservancy and hydropower infrastructure. Adaptable to various geological and hydrological conditions, Hydraulic Elevator Dams are widely used in both national and international water management initiatives.
As an experienced provider of hydraulic dam construction, we specialize in customized solutions that include hydraulic elevator dams and rubber weirs. Tailored to meet specific project requirements, our solutions ensure reliable and sustainable water management, whether for public or private water conservation, urbanization, or ecological projects
High-Quality Gate Materials
RCC, Steel, or Stainless Steel Options: Tailored to meet environmental demands and durability standards, these materials enhance the structural longevity of hydraulic elevator dams in both natural and engineered water bodies.
Customizable Gate Types
Arc, Plate, and Customized Shapes: Hydraulic elevator dams offer various gate shapes, including arc, plate, and specialty forms, allowing for flexible configurations to meet project-specific requirements.
Gate Height (H) Adjustability
Height Range from 0.5m to 6.0m: Adaptable to varying hydrological and site conditions, ensuring optimal water flow control in different applications, from urban flood protection to irrigation and reservoir management.
Single Span Width Options
Standard Widths of 6m, 7m, and 8m, with Customizable Spans: Flexibility in span width supports a range of hydraulic dam installations, scaling easily to fit large river landscapes or compact urban settings.
Robust Hoisting Mechanisms
Plunger-Type, Double-Acting, and Multi-Stage Cylinders: Offering multiple cylinder types for gate hoisting, hydraulic elevator dams ensure smooth, reliable gate movement even under high load or rapid operation conditions.
Advanced Control Systems
Manual, PLC, Local, and Remote Computer-Controlled Systems: Designed for operational flexibility, with options for synchronous dam elevation, automated flood-level alerts, and emergency gate lowering, providing responsive control for both planned and emergency conditions.
Integrated Triple Hinge and Variable-Amplitude Structure
Advanced Triple-Hinge Design: This robust structure provides enhanced stability and adaptability under varying water pressures, improving durability and minimizing structural wear over time.
Efficient Panel and Cylinder Alignment
Cylinder-Supported Panels: Panels and cylinders work in the same operational direction, reducing the need for extensive movement and lowering maintenance needs.

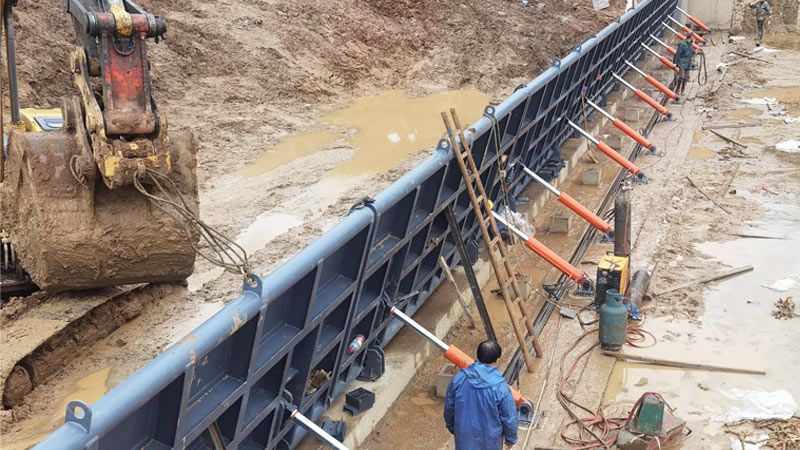

Simplified Installation Requirements
Minimal Ditching Needs: The structure’s design enables easy installation without extensive groundwork, making it suitable for diverse landscapes and geological conditions.
Ice and Debris Management
Adaptive Panel Dropping Sequence: Designed to handle ice and pressure buildup by enabling a controlled dropping sequence, which prevents dam overload and maintains gate functionality.
Ice-Breaking Capacity of up to 51.2 T/M: The hydraulic dam structure is engineered for effective ice breaking, with all ice-clearing operations conducted in front of the dam to prevent blockages.
Fast and Controlled Gate Operations
Integrated Hydraulic Circuit and Valve Monitoring: Advanced software monitors hydraulic valves and water levels, providing precise control and real-time status updates for enhanced operational safety.
Quick Lifting and Safe Dropping Mechanisms: The dam’s hydraulic system allows for swift gate elevation and controlled descent, with unpowered locking for added safety in high water conditions.
Variable-Speed Dam Lowering
Adjustable Speed Range from 30 Seconds to 30 Minutes: Meeting different discharge requirements, the dam’s adjustable descent speed ensures effective flood control and minimizes downstream impact during rapid water release.
Hydraulic elevator dams and spillway weirs serve critical functions across multiple water management scenarios, including:
Flood Control: Reliable gate operation and efficient flood discharge, protecting both urban and rural areas.
Dam Safety and Hydropower: Secure, steady water flow management for hydroelectric facilities, supporting sustainable power generation.
Navigation and Water Diversion: Integrated with radial spillway gates, inflatable rubber dams, and water diversion structures to ensure clear, navigable waterways and effective resource allocation.
Adaptability in Challenging Environments: Engineered to withstand conditions such as mountainous terrains, rivers with debris, siltation, and ice buildup, hydraulic elevator dams are ideal for diverse water management challenges.
Comprehensive Remote and Real-Time Monitoring
On-Line and Mobile App Access: Enables remote monitoring and instant alerts, providing an intelligent, data-driven approach to hydraulic structure management.
Dynamic Water Level Monitoring: Compatible with local flood control systems and cascade dispatching, ensuring cohesive management across water conservation networks.
Intelligent Control and Compatibility
Integration with Local and National Flood Control Systems: Ensures seamless compatibility with broader water resource and flood response infrastructure, enhancing overall system intelligence.
As an established supplier of hydraulic elevator dam solutions, we provide an extensive suite of services to meet client needs across the lifecycle of each project:
Design and Engineering: Expert consultation to create customized hydraulic dam solutions tailored to site-specific and operational requirements.
Manufacturing and Quality Control: High-precision manufacturing processes ensure quality, durability, and compliance with international water management standards.
Installation and Commissioning: Professional installation and startup support guarantee smooth integration into existing infrastructure.
Comprehensive Training and Ongoing Support: Extensive training and dedicated customer support for operational efficiency, including maintenance programs and on-site inspections to ensure long-term performance.
Our experienced team is dedicated to delivering tailored, efficient, and sustainable hydraulic elevator dam solutions, helping clients achieve optimized water management and flood control across various applications.
